beko refrigeratore error codes

In this article from Arvin service as Representation of Beko we want to fully explain to you the reason and how to fix the  error of Beko refrigerator and and side by side . If possible, we will introduce the broken part in each error so that you an fix the problem more easily



Beko refrigerator error

Error E0 in Beko refrigerator

Cause: Freezer temperature sensor failure

How to detect and fix error code E0 Beko refrigerator

.check the ohm value of the sensor inside the freezer. If the ohm sensor at about 25 ° C was about 10 k Ohm, the sensor is healthy

Most of the time, the sensor itself is defective, but sometimes it is observed that the connectors or communication wires between the sensor and the board are defective. Check them and replace if disconnected.

.If the sensor, connector and communication wires of the sensor were all safe may be electrical board is broken

Error E1 in Beko refrigerator

Cause: Freezer defrost sensor failure

How to detect and fix error code E1 Beko refrigerator

first of all  control the ohm value of the defrost sensor installed on the evaporator inside the freezer

If the ohm sensor was about 10 k Ohm at 25 ° C . and if the Resistance of sensor increased when you cooled the sensor and decreased when you heated the sensor, the defrost sensor is safe

.after this step, we suggest that you measure the resistance value of the defrost sensor from the board

If it is OK, replace the electronic board

 Error E3 in Beko refrigerator- beko fridge freezer error code E3

Cause: Refrigerator defrost sensor failure

How to detect and fix error code E3 Beko refrigerator

measure the resistance of the sensor installed on the evaporator inside the refrigerator
Its value at a temperature of 25 degrees Celsius should be about 10 k Ohm. By heating it, the resistance of the sensor decreases and by cooling it, the resistance of the sensor increases

.after this step, we suggest that you measure the resistance value of the defrost sensor from the board

If it is OK, replace the electronic board



beko fridge freezer error code E4

Cause: Defects in the defrost system

How to detect and fix error code E4 Beko refrigerator

This error is related to problems in the defrost system of Beko refrigerator
Measure the resistance of the element. It should be between 300 and 450 ohms depending on the refrigerator model
Also check that the thermofuse is healthy. Most E4 errors are related to thermofuse burning



Error E8 in Beko refrigerator

Cause: Ice maker sensor failure

How to detect and fix error code E8 Beko refrigerator

Check the sensor under the ice maker mold. The resistance of the Ice maker sensor at ambient temperature should be about 10 k Ohm. Usually the sensor wire is damaged



Error E9 in Beko refrigerator

Cause: Ice maker unit failure

How to detect and fix error code E9 Beko refrigerator

Defects in the ice maker set include ice mold , rotating machine, microswitches, ice mold

The E9 error in the Beko fridge freezer combi models that do not have an ice maker is mainly related to the failure of the thermofuse or element and sometimes the range

beko fridge freezer error codes

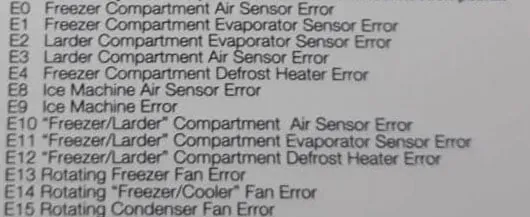

 Beko side-by-side refrigerator error codes with 4 doors

In this section, we refer to the error codes in the Beko 4-door side-by-side refrigerator

E0 = Fault in the freezer’s ambient temperature sensor

The resistance of the sensor inside the cabin in the freezer section should be 10 kOhm at ambient temperature



E1 = Fault in freezer defrost sensor

The resistance of the sensor on the evaporator inside the freezer should be 10 kOhm at ambient temperature



E2 = Refrigerator defrost sensor fault

The resistance of the sensor on the evaporator inside the refrigerator should be 10 kOhm at ambient temperature



E3 = Fault in refrigerator’s ambient temperature sensor



E4 = Defects in the defrost system
First of all, check the thermofuse then check freezer element and other parts same wire



E8 = Ice maker sensor failure

Check the resistance of the sensor under the ice mold. The sensor wire is mostly damaged



E9 = Defects in the ice maker set



  E10 = Freezer/Larder (bottom right) cabin sensor failure



E11 = Freezer/Larder (bottom right) Defrost sensor failure



E12 = Freezer/Larder (bottom right) Element failure or thermofuse



E13 = Freezer fan failure or same times this error related to electrical board



E14 = Freezer/Larder (bottom right) Fan failure



E15 = Condenser fan failure
